Pathogenic mutations are changes in DNA that disrupt gene function, leading to disease. These alterations—such as single nucleotide substitutions, insertions, deletions, or structural rearrangements—can impair critical processes like protein synthesis, enzyme activity, or cellular signaling. For example, mutations in the BRCA1 gene elevate cancer risk, while cystic fibrosis arises from defects in the CFTR gene. Studying pathogenic mutations is vital for understanding disease origins, improving diagnostics, and developing targeted treatments. Beyond clinical applications, this research informs genetic counseling, enabling families to assess inheritance risks. It also advances precision medicine, where therapies are tailored to an individual’s genetic profile, optimizing outcomes for conditions ranging from rare metabolic disorders to complex diseases like Alzheimer’s.
Identifying pathogenic mutations relies on a blend of experimental and computational approaches. Sequencing technologies, such as whole-exome or whole-genome sequencing, pinpoint genetic variants by comparing patient DNA to reference genomes. Functional assays, like CRISPR-Cas9 editing or protein stability tests, validate whether a mutation disrupts biological processes. On the computational side, tools like PolyPhen-2, SIFT, and CADD predict pathogenicity by analyzing evolutionary conservation, structural impacts, and biochemical properties. Machine learning models further integrate multi-omics data (e.g., transcriptomics, proteomics) to prioritize high-risk variants. Databases like ClinVar and gnomAD aggregate global findings, helping researchers distinguish harmful mutations from benign polymorphisms. Despite these advances, challenges remain, such as interpreting variants of uncertain significance (VUS) and understanding how mutations interact in complex diseases.
Figure 1. Mutation variants in cancer cell lines (from Meritudio's Tumor Models Module)
Missense mutations, which arise from single nucleotide substitutions that alter amino acids in proteins, are among the most frequent genetic changes observed in cancers. These mutations can disrupt protein function by destabilizing structures, impairing enzymatic activity, or perturbing interaction networks critical for cellular processes like signaling and DNA repair. For example, in non-small-cell lung cancer (NSCLC), missense mutations in BRAF (e.g., V600E) and TP53 (e.g., V272M) drive oncogenic pathways, while in pediatric T-cell acute lymphoblastic leukemia (T-ALL), NOTCH1 missense mutations occur in ~43.5% of cases, often co-occurring with alterations in FBXW7, KRAS, or PTEN. Their prevalence underscores their role in tumorigenesis, making them key targets for precision therapies, such as BRAF/MEK inhibitors in BRAF-mutant NSCLC. Advances in computational tools and multi-omics profiling continue to refine their classification and therapeutic relevance in cancer genomics.
Computational prediction of missense mutations is essential for understanding their role in disease and guiding precision medicine. Among the available tools, AlphaMissense stands out as the most accurate method for predicting pathogenic missense mutations in coding regions[1]. Leveraging AlphaFold’s protein structure predictions, AlphaMissense evaluates how amino acid changes disrupt protein folding, stability, and interactions, achieving unparalleled precision. Specifically, AlphaMissense achieves an area under the receiver operating characteristic curve (auROC) of 0.940 on the ClinVar dataset, outperforming existing tools like EVE (auROC 0.911) and VARITY (auROC 0.885). It classifies 32% of the 71 million possible human missense mutations as potentially pathogenic and 57% as likely benign, with a precision of 90%. Its performance is even better than the recently release Evo 2, a newer and large language model (LLM) trained on 9.3 trillion nucleotides.
Figure 2. Performance comparison on computional methods on predicting pathogenic missense mutations (from [2])
Meritudio has seamlessly integrated AlphaMissense, a cutting-edge AI model renowned for its precision in predicting the pathogenicity of missense mutations, into its Bioinformatics Cloud platform. This integration significantly enhances mutation annotation and data interpretation across Meritudio’s tools, including the Tumor Models Database and the Cell Line Biomarker Discovery submodule within its Biomarker Discovery module. By leveraging AlphaMissense’s ability to classify missense variants as benign, pathogenic, or of uncertain significance with unparalleled accuracy, Meritudio provides researchers with deeper insights into the functional impact of mutations on protein structure and stability. This capability not only improves the interpretation of genomic data but also accelerates the identification of potential therapeutic targets and biomarkers, driving advancements in cancer research and precision medicine. Through this innovative approach, Meritudio empowers researchers to make data-driven decisions, fostering breakthroughs in oncology and beyond.
References
[2] https://arcinstitute.org/manuscripts/Evo2
Contact us (bd@meritudio.com) for a 30-minute demo and free trial to Meritudio's Bioinformatics Cloud!
In drug discovery and cancer research, accurately differentiating between drug mechanisms—particularly cytostatic (growth-inhibiting) and cytotoxic (cell-killing) agents—is critical for evaluating therapeutic potential. While the half-maximal inhibitory concentration (IC50) has long been a standard metric for quantifying drug potency, the Area Under the dose-response Curve (AUC) offers a more comprehensive and reliable measure of drug response. This essay argues that AUC outperforms IC50 in distinguishing cytostatic from cytotoxic drugs by integrating both potency and efficacy, thereby capturing the full biological impact of a compound.

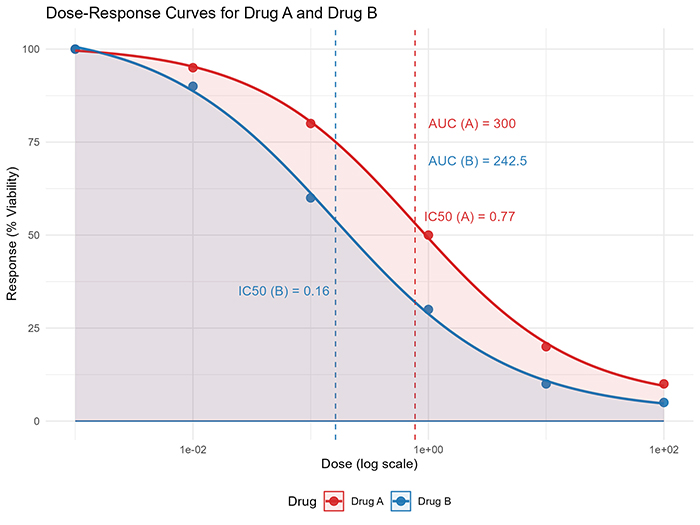

Figure 1. IC50 and AUC from dose-response curves.
The IC50 represents the drug concentration required to reduce a biological response (e.g., cell viability) by 50%. However, this metric has critical shortcomings:
● Ignores Efficacy: IC50 reflects potency but not the maximum effect (efficacy). Two drugs with identical IC50 values may differ radically in their ability to inhibit or kill cells.
Example: A cytostatic drug might arrest cell growth at 50% viability (IC50 = 1 μM) but fail to kill cells even at high doses. A cytotoxic drug with the same IC50 could reduce viability to 10% at saturation. IC50 alone cannot distinguish these mechanisms.
● Fails in Partial Response Scenarios: Cytostatic agents often exhibit incomplete inhibition, plateauing at viability levels far above 0%. IC50 values in such cases may be extrapolated beyond experimentally tested concentrations, leading to misleading interpretations.
● Sensitive to Assay Artifacts: Noisy data or suboptimal dose ranges can skew IC50 estimates, especially if the curve lacks a clear sigmoidal shape.
The AUC quantifies the total effect of a drug across all tested concentrations, calculated as the integral of the dose-response curve. This metric inherently combines:
● Potency (how quickly the effect occurs with increasing dose),
● Efficacy (maximum achievable effect).
Case Study 1: Cytostatic vs. Cytotoxic Drugs
Consider two anticancer agents:
● Cytostatic drug (e.g., palbociclib): Inhibits cell cycle progression, reducing proliferation but leaving a residual viable cell population (e.g., plateaus at 40% viability).
● Cytotoxic drug (e.g., paclitaxel): Promotes apoptosis, driving viability toward 0% at high doses.
If both drugs have an IC50 of 0.5 μM, their identical potency would obscure their mechanistic differences. However, the cytostatic drug’s dose-response curve plateaus at a higher viability, resulting in a larger AUC (greater area under a higher baseline). The cytotoxic drug’s curve descends to near-zero viability, yielding a smaller AUC. AUC thus unambiguously differentiates their modes of action.
Case Study 2: Partial vs. Full Agonists
AUC also clarifies responses in drugs with similar IC50s but divergent efficacies. For instance:
● Drug A (partial agonist): IC50 = 1 μM, maximum inhibition = 60% (AUC = 300).
● Drug B (full agonist): IC50 = 1 μM, maximum inhibition = 95% (AUC = 150).
Despite identical IC50s, Drug B’s smaller AUC reflects its stronger overall effect, highlighting its superiority in killing cells.
Case Study 3: Drugs with Undefined IC50 Values
A critical advantage of AUC emerges in scenarios where IC50 cannot even be calculated. Consider two weakly active compounds:
● Drug C: Reduces viability to 60% at saturation but never achieves 50% inhibition (no IC50).
● Drug D: Fails to reduce viability at any concentration (no effect, flat curve at 100%).
Here, IC50 is undefined for both drugs, rendering them indistinguishable by traditional metrics. However, AUC captures their stark differences:
● Drug C’s curve descends to 60%, producing a moderate AUC reflecting partial efficacy.
● Drug D’s curve remains flat at 100%, yielding a maximal AUC (equivalent to no effect).
This example underscores AUC’s unique ability to quantify even subtle responses, such as weak cytostatic activity, where IC50 fails entirely.
1. High-Throughput Screening (HTS):
Large-scale oncology screens often prioritize AUC because it identifies compounds with both strong potency and complete efficacy, avoiding false positives from cytostatic agents that stall growth but fail to kill.
2. Mechanistic Insight:
AUC profiles can flag non-classical behaviors, such as biphasic responses (e.g., autophagy induction at low doses, apoptosis at high doses), which IC50 alone would overlook.
3. Reduced Variability:
AUC relies on observed data rather than extrapolated parameters, making it less prone to experimental noise.
Critics argue that IC50 is simpler to interpret and aligns with traditional pharmacology frameworks. However, this simplicity comes at the cost of mechanistic nuance. Hybrid approaches—reporting both IC50 and AUC—are ideal, but in resource-limited settings, AUC provides greater discriminative power.
5. Meritudio’s Approach to AUC Calculation
Meritudio fits dose-response curves and calculates normalized AUC (nAUC) and other parameters in its advanced Pharmacology module. The nAUC values are calculated by a common concentration range so they are comparable between different studies even if they have different testing concentration ranges.

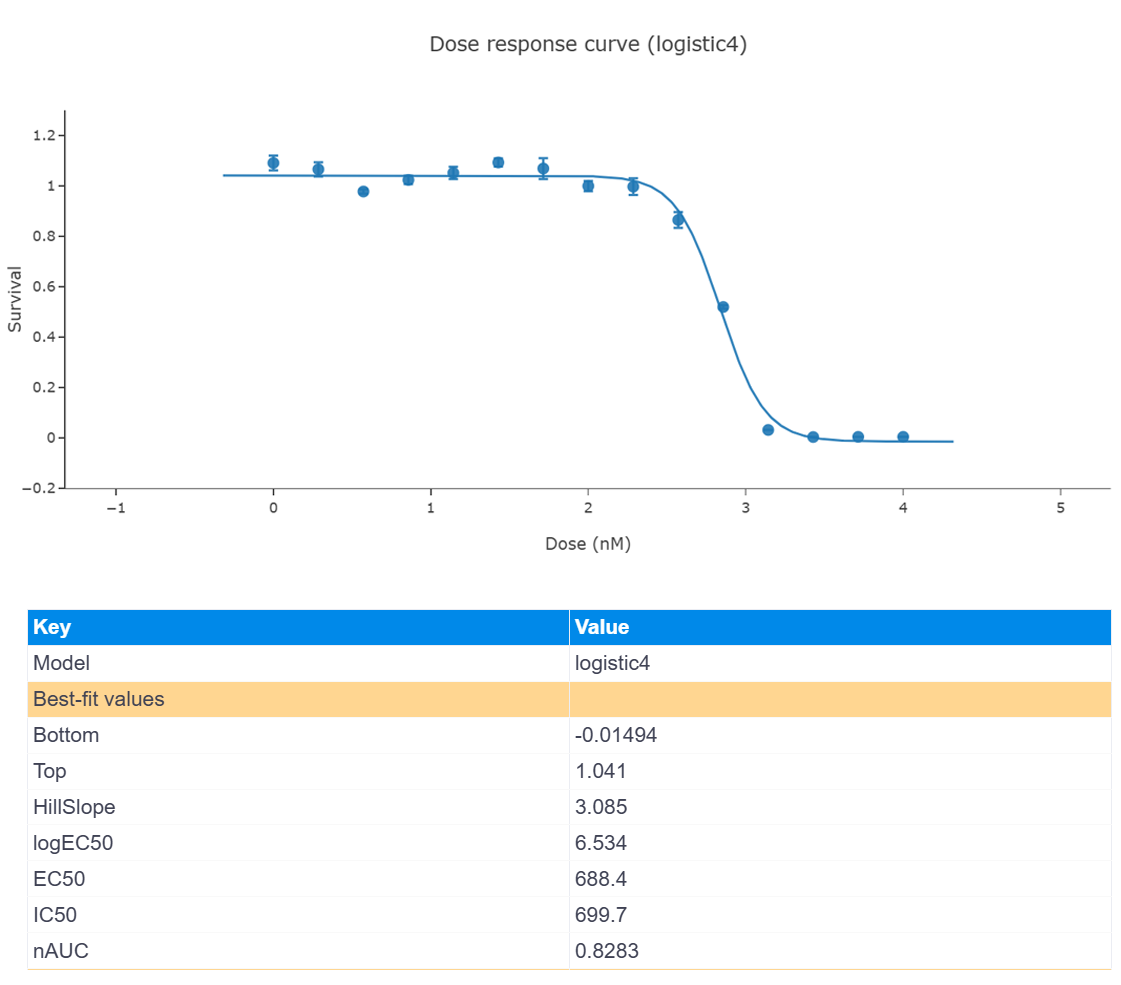

Figure 2. Normalized AUC (nAUC), IC50 and other fitted parameters from a dose-response curve (from Meritudio's Pharmacology Module)
The AUC’s ability to encapsulate the entirety of a drug’s dose-response relationship makes it indispensable for distinguishing cytostatic from cytotoxic agents, especially in complex biological systems. By contrast, IC50 reduces a multidimensional response to a single potency value, obscuring critical differences in efficacy. In cases where drugs lack an IC50 entirely—such as weakly cytostatic compounds or inactive agents—AUC remains the sole metric capable of differentiating their biological impact. As precision medicine advances, embracing AUC as a gold standard will enhance drug prioritization, reduce misinterpretations, and accelerate the development of therapies tailored to specific mechanisms of action. In the quest to conquer cancer, where the line between growth arrest and cell death defines therapeutic success, AUC emerges as the metric of choice.
Contact us (bd@meritudio.com) for a 30-minute demo and free trial to Meritudio's Pharmacology Module and more!
Proteomics has emerged as a critical complement to genomic and transcriptomic analyses, bridging the gap between genetic blueprints and functional phenotypes. While transcriptomics captures mRNA abundance, proteomics directly interrogates the effector molecules of cellular processes---proteins---including their post-translational modifications (PTMs), interactions, and turnover rates. This capability is particularly vital for understanding diseases like cancer, where dysregulated signaling pathways (e.g., MAPK, PI3K/AKT) and aberrant PTMs (e.g., phosphorylation, ubiquitination) drive malignancy. Technological advancements in mass spectrometry (MS), such as high-resolution Orbitrap platforms and data-independent acquisition (DIA), have propelled proteomics from a niche technique to a cornerstone of systems biology, enabling deep profiling of thousands of proteins across diverse cell line models.
By far, the most ambitious effort on cell line proteomics profiling was the pan-cancer proteomic mapping of 949 human cell lines by Goncalves et al. (2022). To make the proteomic workflow clinically applicable, the authors reduced preparation times, minimized peptide loads, and shortened LC/MS run times. This allows for efficient analysis of many small cancer samples, achieving high throughput with minimal instrument downtime. As a result, the dataset quantifies a total of 8,498 proteins across various cancer cell lines, with a median of 5,237 (min-max range: 2,523–6,251) proteins per cell line.
Figure 1. Number of quantifed proteins by tissue type for 949 cancer cell lines (Drawn by Meritudio based on data from Goncalves et al. 2022)
While their method offers significant advantages in terms of efficiency and applicability to small cancer samples, it does have a notable drawback: it quantifies too few proteins. This limitation can restrict the depth of biological insights. For cell lines, where it's crucial to check protein expression across different lines, missing data creates a significant problem. It also makes pathway-level analysis using member protein expression impractical.
Optimized experimental techniques coupled with longer run time can significantly increase the number of quantified proteins, especially with the recent introduction of the Astral mass spectrometer, which combines ultra-high sensitivity with rapid scan rates to achieve deep proteome coverage at unprecedented speeds (Thermo Fisher Scientific, 2023). The One Hour Human Proteome (2024) study reports:
"Here, in triplicate 7-min microflow active LC gradients on the Orbitrap Astral MS, we report 7852 protein groups from 94,267 peptides on average. When using 15-, 30-, and 60-min active, nano-LC gradients, triplicate experiments yield an average of 9,831, 10,411, and 10,645 unique protein groups from 195,612, 234,406, and 245,754 unique peptides, respectively… Our 30-min method delivered approximately 347 proteins per minute."
Conclusion
In lieu of the advancement, it is expected that new initiatives of cell line proteomics profiling projects will routinely quantify >8000 proteins per cell line.
References
Combination therapies are a cornerstone of modern oncology, offering improved efficacy and reduced resistance compared to single-agent treatments. However, accurately assessing drug synergy in in vivo models remains a critical challenge for translating preclinical findings into clinical success. A groundbreaking study published in Cancer Research Communications1 introduces invivoSyn, a novel statistical frameworks, to address these challenges, paving the way for more reliable synergy evaluation in animal models. This article synthesizes key insights from the paper and contextualizes them within broader advancements in the field and our implementation of the method.
1. The Need for Robust In Vivo Synergy Assessment
Traditional methods for evaluating drug synergy, such as the Bliss independence model and Loewe additivity, have been widely applied in in vitro studies. However, their adaptation to in vivo models is fraught with limitations, including assumptions about tumor growth kinetics, data completeness, and experimental noise. Moreover, existing tools struggle to validate in vitro synergy findings in complex in vivo systems, such as patient-derived xenografts (PDXs) or syngeneic models..

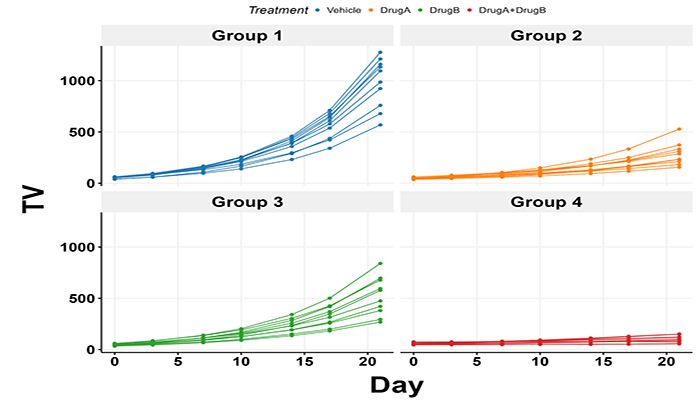

Figure 1. Tumor growth curves for a standard single-dose 4-group in vivo combination study (source: Meritudio's Pharmcology Module)
2. Innovative Approaches for In Vivo Synergy Quantification
The study by Mao and Guo1 introduces invivoSyn, a unified statistical framework designed to overcome these limitations. Key features include:.
● Model Flexibility: Unlike traditional methods, invivoSyn does not assume specific tumor growth patterns or require balanced datasets. It calculates combination indices (CI) and synergy scores under both Bliss and Highest Single Agent (HSA) models, accommodating diverse experimental designs.
● Validation of In Vitro Findings: The method bridges in vitro and in vivo studies by enabling direct comparison of synergy across models. For instance, Bliss synergy observed in cell lines can now be rigorously tested in mouse models, as demonstrated in a recent Nature study2.
● Handling Sparse Data: By leveraging linear modeling and borrowing information across drug pairs, invivoSyn reduces false discovery rates in datasets with limited replicates or doses—a common issue in large-scale screens.
Figure 2. Bliss combination index (CI) and synergy score with bootstrap p-values for the single-dose 4-group in vivo combination study in Figure 1 (source: Meritudio's Pharmcology Module)
Figure 3. HSA combination index (CI) and synergy score with bootstrap p-values for the single-dose 4-group in vivo combination study in Figure 1 (source: Meritudio's Pharmcology Module)
3. Meritudio’s Approach to In Vivo Synergy Assessment
Meritudio make the in vivo synergy assessment easily accessible through its advanced Pharmacology module, which implements an extended version of invivoSyn. Key features include:
• Enhanced Implementation: Implements Bliss Independence and HSA models as in the original invivoSyn for 2-drug combination, but extends the mathematical model to 3-drug combination (n-drug combination is feasible as well, contact us if needed).
• One-Click Analysis: Enables users to upload tumor volume data and generate detailed reports with a single click. Reports include methods, results, and interpretations, providing actionable insights into drug interactions.
Figure 4. Tumor growth curves for a standard single-dose 5-group in vivo combination study to evalute 3-drug synergy (source: Meritudio's Pharmcology Module)
Conclusion
The advent of methods like invivoSyn represents a paradigm shift in preclinical drug development. By addressing statistical and practical limitations of traditional models, these tools enhance our ability to identify clinically relevant synergies while reducing resource burdens.
Meritudio’s Pharmacology Module has significantly enhanced the accessibility and utility of the invivoSyn method, originally developed in R code. This approach not only simplifies the process for researchers but also extends the method to support 3-drug combinations, thereby broadening its applicability in preclinical studies.
References
In vitro synergy studies are essential for identifying and evaluating the combined effects of therapeutic agents, such as drugs, compounds, or biologics, in controlled laboratory settings. These studies help researchers determine whether the interaction between two or more agents produces a synergistic effect, where the combined effect is greater than the sum of their individual effects. Assessing in vitro synergy is a critical step in drug development, as it can lead to the discovery of more effective treatments, reduced dosages, and minimized side effects. This article explores the key methods used to assess in vitro synergy, highlighting their principles, applications, and limitations.
1. Dose-Response Analysis
Principle:
Dose-response analysis is the foundation of synergy assessment. It involves measuring the effect of individual agents at varying concentrations to establish their potency (e.g., IC50 or EC50 values) and efficacy. Once the dose-response curves for individual agents are established, combinations of agents are tested to determine whether their combined effect exceeds the expected additive effect.
Figure 1. Dose-response curves and response matrix (source: Meritudio's Pharmcology Module)
Methodology:
• Serial dilutions of each agent are prepared and applied to a biological system (e.g., cell cultures or enzyme assays).
• The response (e.g., cell viability, enzyme inhibition, or antimicrobial activity) is measured and plotted against the concentration of the agent.
• The dose-response curves of individual agents are compared to those of the combinations.
Applications:
• Used as a preliminary step to identify potential synergistic interactions.
• Provides baseline data for more advanced synergy quantification methods.
Limitations:
• Does not directly quantify synergy; requires additional models for interpretation.
• May not account for complex interactions in biological systems.
2. Bliss Independence Model
Principle:
The Bliss Independence model assumes that the effects of two agents are independent and calculates the expected additive effect based on probability theory. Synergy is inferred when the observed combined effect exceeds the expected additive effect.
Figure 2. Bliss synergy score 2D contour and 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• The expected additive effect (Eadd) is calculated using the formula:
Eadd = EA + EB - (EA X EB)
where EA and EB are the effects of agents A and B alone.
• The observed combined effect (Eobs) is compared to Eadd.
Applications:
• Suitable for high-throughput screening of drug combinations.
• Often used in anti-tumor, antimicrobial and antiviral research.
3. Loewe Additivity Model
Principle:
The Combination Index (CI) method, based on the Loewe Additivity model, is one of the most widely used approaches to quantify synergy. It calculates whether the combined effect of two or more agents is synergistic, additive, or antagonistic. A CI value < 1 indicates synergy, CI = 1 indicates additivity, and CI > 1 indicates antagonism.
Figure 3. Loewe synergy score 2D contour and 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• Dose-response data for individual agents and their combinations are collected.
• The CI is calculated using the formula:
where D1, D2,..., Dn are the doses of the individual agents in the combination required to achieve a specific effect, and Dx1, Dx2,..., Dxn are the doses of the individual agents alone required to achieve the same effect.
Applications:
• Widely used in cancer research, antimicrobial studies, and drug discovery.
• Provides a quantitative measure of synergy.
Limitations:
• Assumes dose-response curves follow a specific shape (e.g., sigmoidal).
• May not account for non-linear interactions or complex biological systems.
4. MuSyC (Multi-dimensional Synergy of Combinations) Framework
Principle:
The MuSyC framework is a modern, advanced approach to quantifying synergy that addresses many limitations of traditional methods. Unlike classical models, MuSyC evaluates synergy across multiple dimensions, including potency, efficacy, and dose-response curve shape. It provides a more comprehensive and accurate assessment of drug interactions by considering both synergistic and antagonistic effects at different concentration ranges.

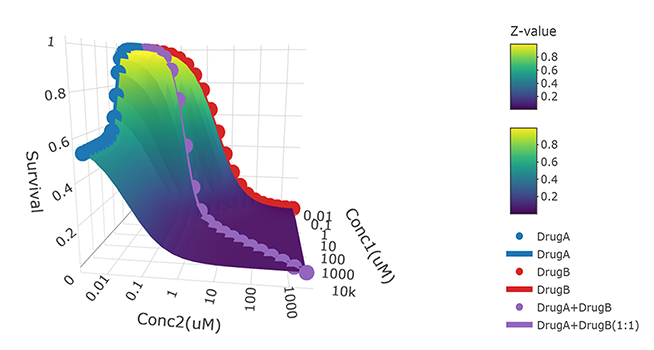

Figure 4. MuSyc 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• MuSyC uses a multi-parameter model to fit dose-response data for individual agents and their combinations.
• It calculates two synergy parameters:
α: Quantifies synergy in potency (shifts in IC50 values).
β: Quantifies synergy in efficacy (changes in maximal effect).
• The framework also accounts for antagonistic interactions, providing a balanced view of drug interactions.
Applications:
• Particularly useful for complex drug combinations where traditional models fail.
• Enables the identification of context-dependent synergy (e.g., synergy at low doses but antagonism at high doses).
• Applied in cancer research, infectious diseases, and precision medicine.
Advantages:
• Provides a more nuanced understanding of drug interactions.
• Accounts for both synergistic and antagonistic effects across different concentration ranges.
• Reduces the risk of false positives or misinterpretations.
Limitations:
• Requires high-quality, extensive dose-response data for accurate modeling.
• More computationally intensive than traditional methods.
• May require specialized software or expertise for implementation.
5. Meritudio’s Approach to In Vitro Synergy Assessment
Meritudio exemplifies best practices in synergy assessment through its advanced Pharmacology module, which integrates state-of-the-art models and a user-friendly workflow. Key features include:
• Synergy Model Integration: Implements Bliss Independence, Loewe Additivity, and an enhanced MuSyC framework for comprehensive synergy quantification.
• Enhanced MuSyC Implementation: Builds on the original Nature Communications publication, offering improved computational efficiency and context-dependent synergy analysis for nuanced drug interaction profiling.
• One-Click Analysis: Enables users to upload dose-response data and generate detailed reports with a single click. Reports include methods, results, and interpretations, providing actionable insights into drug interactions.
• Scalability and Accessibility: Supports both small-scale experiments and high-throughput screening, making it suitable for academic and industrial research. The intuitive interface ensures accessibility for researchers of all expertise levels.
Conclusion
Assessing in vitro synergy is a multifaceted process that involves a combination of experimental and computational approaches. Traditional methods like the Bliss Independence and Loewe Additivity models have been widely used, but they often fall short in capturing the complexity of drug interactions. The MuSyC framework represents a significant advancement in synergy quantification, offering a more comprehensive and accurate assessment by considering multiple dimensions of drug interactions, such as potency (α) and efficacy (β).
Meritudio’s Pharmacology Module integrates Bliss, Loewe, and MuSyC models into a user-friendly platform. With one-click analysis and enhanced MuSyC, it simplifies synergy quantification, enabling researchers to efficiently identify and optimize drug combinations for personalized therapies. As technology evolves, platforms like Meritudio, combined with high-throughput screening and AI, will further advance our understanding of drug interactions, transforming drug discovery and precision medicine.
References
• Bliss Independence: Bliss, C. I. (1939). The toxicity of poisons applied jointly. Annals of Applied Biology, 26(3), 585-615. DOI: 10.1111/j.1744-7348.1939.tb06990.x
• Loewe Additivity: Loewe, S. (1953). The problem of synergism and antagonism of combined drugs. Arzneimittel-Forschung, 3(6), 285-290. PMID: 13081480
• MuSyC Framework: Meyer, C. T., et al. (2019). Quantifying drug combination synergy along potency and efficacy axes. Nature Communications, 10(1), 1-11. DOI: 10.1038/s41467-019-09150-9
Cell line screening assays are a cornerstone of preclinical biomarker discovery, offering a controlled and scalable platform to identify molecular signatures associated with drug response, resistance, or disease mechanisms. However, variability in experimental design, data quality, and validation strategies can undermine reproducibility and translational relevance. Below is a guide to best practices for maximizing rigor and impact in biomarker discovery using cell line models.
1. Experimental Design and Cell Line Selection
Choose relevant cell line models:
• Select cell lines that reflect the disease or biological context under study (e.g., cancer subtypes, genetic backgrounds).
• Prioritize well-characterized, authenticated cell lines (e.g., STR/SNP-profiled) to avoid misidentification or contamination.
• Use panels of cell lines to capture genetic diversity (e.g., a panel of lung cancer cell lines, a panel of pan-cancer cell lines carrying KRAS G12C mutation).
Define screening conditions:
• Optimize drug doses and exposure time.
• Include replicates (biological and technical) to account for variability.
• Use appropriate controls (e.g., SOC drug for comparison).
2. High-Quality Screening Assays
Robust readouts for drug response:
• Quantify response using AUC (area under the dose-response curve) instead of IC50, as AUC captures the full dose-response relationship and reduces variability in drugs with shallow curves.
• Use multiplexed assays (e.g., CellTiter-Glo for viability, high-content imaging for phenotypic changes) to measure multiple endpoints.
Multi-omics data integration:
• Pair drug response data with molecular profiling (e.g., RNA-seq, whole-exome sequencing, proteomics) to link biomarkers to mechanisms.
• Prioritize multi-omics biomarkers (e.g., gene expression + mutation + protein levels) to improve predictive power.
3. Data Preprocessing and Quality Control
Normalization and batch correction:
• Normalize omics data to remove technical biases (e.g., TMM for RNA-seq, RUV for batch effects).
• Filter out low-quality samples (e.g., poor viability, outlier responses) or features (e.g., genes expressed in <10% of cell lines).
Address heterogeneity:
• Account for clonal variability by screening multiple replicates or subclones.
• Use dimensionality reduction (e.g., PCA, UMAP) to visualize and adjust for batch effects or confounding factors.
4. Biomarker Identification and Prioritization
Differential analysis:
• Identify features (genes, proteins, mutations) associated with drug response using linear models (e.g., limma), parametric test (e.g., Welch’s test) or non-parametric tests (e.g., Wilcoxon rank-sum test).
• Apply false discovery rate (FDR) correction (e.g., Benjamini-Hochberg) to reduce false positives.
Machine learning for feature selection:
• Use LASSO regression, random forests, or elastic net to prioritize biomarkers with high predictive value.
• Avoid overfitting by cross-validation (e.g., 10-fold) and external validation in independent datasets.
Pathway and network analysis:
• Map biomarkers to biological pathways (e.g., KEGG, Reactome) using tools like GSEA.
• Build interaction networks (e.g., protein-protein interactions) to identify hub genes or functional modules.
5. Validation and Functional Confirmation
In vitro validation:
• Confirm candidate biomarkers using un-assayed cell lines, or orthogonal assays (e.g., siRNA knockdown, CRISPR-Cas9 editing, or overexpression in isogenic cell lines).
• Test biomarkers across additional cell lines or drug analogs to assess generalizability.
In vivo and clinical correlation:
• Validate findings in patient-derived xenograft (PDX) models or organoids to bridge in vitro and in vivo biology.
• Correlate cell line biomarkers with clinical data (e.g., patient survival, treatment response) using public cohorts (e.g., TCGA).
6. Translational Considerations
Clinical relevance:
• Focus on biomarkers detectable in accessible clinical samples (e.g., blood, FFPE tissues).
• Ensure biomarkers align with actionable targets.
Reproducibility and reporting:
• Document protocols, software versions, and analysis parameters in detail.
• Share raw data, code, and processed results in public repositories whenever needed.
7. Common Pitfalls to Avoid
• Overfitting models: Validate biomarkers in independent datasets, not just the discovery cohort.
• Ignoring genetic drift: Regularly authenticate cell lines and avoid long-term passaging.
• Neglecting dose-response dynamics: Use AUC over IC50 to capture full drug efficacy.
• Isolating biomarkers from biology: Prioritize biomarkers with mechanistic links to disease pathways.
8. Emerging Trends
• Single-cell profiling: Resolve intra-tumor heterogeneity in cell line models.
• CRISPR screens: Genome-wide knockout/activation to identify synthetic lethal interactions.
• Dynamic biomarker tracking: Time-course assays to capture adaptive responses (e.g., resistance mechanisms).
Meritudio’s Approach to Biomarker Discovery from Cell Line Screens
Meritudio exemplifies best practices through its curated database of 2,000+ cancer cell lines and 1,800+ oncology drugs, coupled with a standardized workflow. Key features include:
• AUC-Driven Drug Profiling: Prioritizes area-under-the-curve (AUC) over IC50 to capture full dose-response dynamics, reducing variability in drug sensitivity calls.
• Multi-Omics Integration: Combines gene expression, mutations, copy number alterations, and protein data to identify robust, multi-gene biomarker signatures using proprietary algorithms.
• Drug Similarity Search: Identifies drugs with correlated response patterns, aiding MoA hypothesis generation and combination therapy discovery.
• Validation Rigor: Tests biomarkers in independent partial responder (M) cohorts and external datasets, ensuring reproducibility.
Conclusion
Cell line screening assays remain indispensable for biomarker discovery, but their utility depends on rigorous experimental design, multi-omics integration, and robust validation. By prioritizing AUC-driven drug response metrics, leveraging multi-gene multi-omics signatures, and validating findings in clinically relevant models, researchers can identify biomarkers with translational potential. As technologies evolve, combining high-throughput screening with functional genomics and AI-driven analytics will further enhance biomarker discovery pipelines. Platforms like Meritudio demonstrate how curated data and standardized workflows accelerate this process, bridging preclinical findings to clinical applications.
The Meritudio Tumor Models Database is a leading resource for researchers, offering comprehensive insights into over 2,000 commonly used cell lines. This article explores the powerful features of the Model Page, using the HeLa cell line as an example to demonstrate how the database can enhance research efficiency and decision-making.
The Model Page is a centralized hub for all information related to a specific cell line. For the HeLa cell line, the page is intuitively organized into four key sections: Overview, Genomics, Pharmacology, and Analytics. This structured layout ensures researchers can quickly access the data they need without navigating through multiple pages.
The Overview section provides a concise yet comprehensive summary of the HeLa cell line. It includes:
● Basic Information: Origin, disease type, subtype, and relevant clinical data.
● Model Genomics: Key genomic characteristics and data availability.
This section serves as a quick reference for researchers to understand the fundamental properties of the cell line.

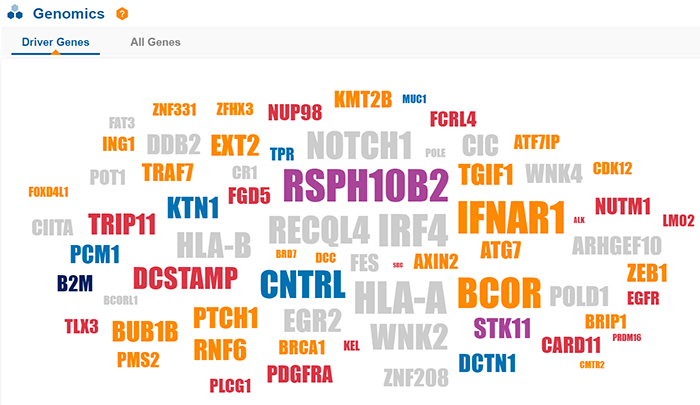

This section displays genetic alterations of near 800 cancer driver genes in the Driver Genes tab. This visual representation provides a quick overview of the complex genetic landscape change, for instance, it shows the copy number loss of RSPH10B2 and the mutation of EGFR. Detailed mutation information is shown in the lollipop graph and a table gives all relevant genomic information. Users can also search for any gene in the All Genes tab.
The section is a treasure trove for researchers interested in drug responses. It offers a detailed list of drug with information on target, MOA, signaling pathway, and efficacy (AUC, IC50, EC50, Hill slope etc.). This information is invaluable for understanding how different compounds affect the cell line and can guide the development of new treatment strategies.
More informative is the comparison of dose-response curves between drugs, and the actual drug response data.
The Analytics section on the Model page offers a suite of advanced tools to deeply analyze and interpret cell line data, enabling researchers to optimize experimental design and resource allocation. Below are key insights derived from its analytical functions:
1. Genetic Similarity Analysis
● HELA229 and HELA exhibit 95.79% genetic overlap, indicating near-identical genomic profiles. This high similarity suggests functional redundancy, meaning researchers could streamline studies by selecting one line without compromising genetic relevance.
2. Efficacy Similarity Analysis
● KYSE450 and HELA share strikingly similar drug response patterns. To avoid duplication in drug efficacy experiments, prioritizing one cell line (e.g., based on availability or secondary characteristics) is recommended.
3. Pathway Activation Analysis
● The KEGG Glyoxylate and Dicarboxylate Metabolism pathway shows pronounced activation in HELA. This metabolic pathway’s activity may influence cellular responses to therapies targeting energy metabolism, highlighting its potential as a biomarker or therapeutic target.
Gene expression data is crucial for understanding the molecular mechanisms underlying tumor development and progression. By analyzing the expression levels of various genes, researchers can identify key pathways involved in tumorigenesis, discover potential biomarkers for diagnosis and prognosis, and uncover novel therapeutic targets. This information is essential for advancing cancer research and developing more effective treatments. In Meritudio Tumor Models Database, there are two ways to obtain mRNA expression data for multiple genes.

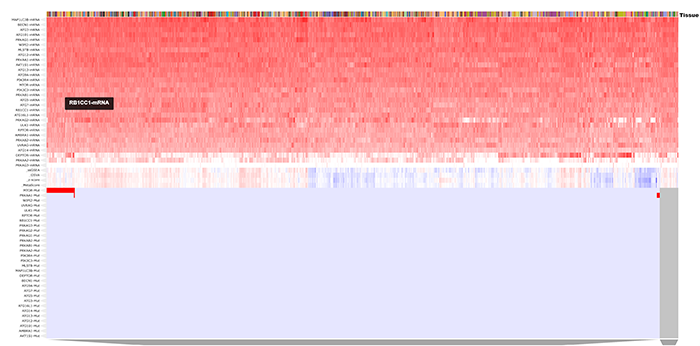

This method allows users to select a specific biological pathway and view the expression and mutation information of all genes within that pathway. The animated graph shows the operations to obtain pathway activity score, gene expression, and mutation data for the Autophagy pathway in the WikiPathways database :
● Gene expression by default is displayed in z-transformed scores, users can select log2TPM as well.
● Rows and columns in the heatmap can be arranged in multiple ways.
● MTOR and PRKAA1 genes are mutated in this pathway and their mutations are mutually exclusive.
This method involves manually entering the names of specific genes to perform a search. This approach is useful when researchers have a predefined list of genes they are interested in and want to obtain detailed expression data for those particular genes. The animated graph shows the operations to obtain gene expression data for four key genes (MDM2, MDM4, CDKN2A, TP53) in the TP53 pathway:
● Gene expression by default is displayed in z-transformed scores, users can select log2TPM as well.
● Gray grids in the heatmap indicate data unavailable.
● Gene expression can be viewed, ranked, compared and downloaded from the table below the heatmap.
In cancer research, understanding the interplay between specific genetic mutations and pathway activations is crucial for uncovering disease mechanisms and developing targeted therapies. Combination searches allow researchers to identify cell lines that exhibit multiple molecular features, such as mutations in key genes (e.g., BRCA1/2) and activation of critical signaling pathways (e.g., WNT). These insights can reveal potential biomarkers, therapeutic targets, and resistance mechanisms.
This is the second article in a series that demonstrates how to perform combination searches in Meritudio’s Tumor Models Database. In this guide, we will focus on identifying cell lines with:
● BRCA mutations (BRCA1 and/or BRCA2 mutations), which are commonly associated with DNA repair deficiencies and cancer susceptibility.
● WNT pathway activation, a key signaling pathway involved in cell proliferation, differentiation, and cancer progression.

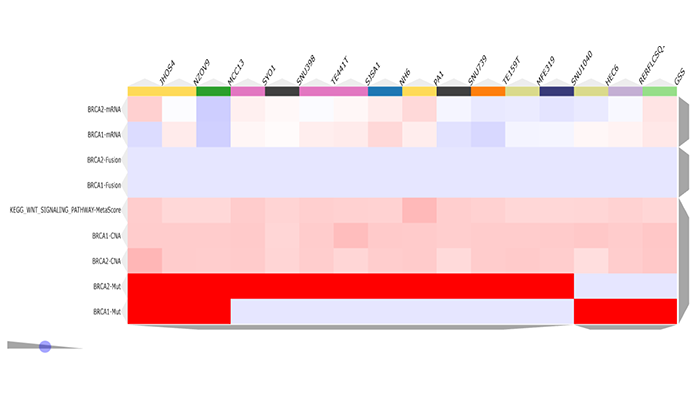

The animated graph shows the operations to identify 16 cell lines satisfying the search criteria:
● The combination search is accomplished by the use of logic operators OR and AND.
● The three filters form the search criteria: ((BRCA1: & mutation = Somatic) OR (BRCA2: & mutation = Somatic)) AND (KEGG_WNT_SIGNALING_PATHWAY: MetaScore = 1.5~2.8), which means (BRCA1_mutation OR BRCA2_mutation) AND WNT_pathway_activation.
● There are several WNT pathways, we used KEGG_WNT_SIGNALING_PATHWAY in the search, but others can be used as well, such as HALLMARK_WNT_BETA_CATENIN_SIGNALING, BIOCARTA_WNT_PATHWAY, REACTOME_SIGNALING_BY_WNT, WP_WNT_SIGNALING_PATHWAY.
In cancer research, combination searches are essential for understanding the complex genetic landscape of tumors and identifying potential therapeutic targets. BRAF and KRAS are two critical oncogenes frequently mutated in various cancers, and their mutations often drive tumor growth through the activation of the MAPK/ERK signaling pathway. While BRAF and KRAS mutations are typically mutually exclusive—meaning they rarely occur together in the same tumor—studying cell lines with either mutation provides valuable insights into their distinct roles in cancer biology and treatment responses.
Note: We are using BRAF and KRAS as an example to demonstrate how to perform a combination search for multiple genes. This method can be applied to other gene combinations to explore their co-occurrence or mutual exclusivity in cancer cell lines, providing a powerful tool for uncovering new insights into cancer biology and therapy development.
This combination search focuses on identifying cell lines with either BRAF or KRAS mutations, enabling researchers to:
● Compare the molecular and phenotypic differences between BRAF- and KRAS-driven cancers.
● Explore targeted therapies specific to each mutation (e.g., BRAF inhibitors for BRAF-mutant cancers and KRAS G12C inhibitors for KRAS-mutant cancers).
● Investigate the broader implications of MAPK/ERK pathway activation in cancer progression.
The animated graph shows the operations to identify 392 cell lines satisfying the search criteria:
● The combination search is accomplished by the use of logic operators OR.
● The two filters form the search criteria: (BRAF: & mutation = Driver) OR (BRAF: & mutation = Driver), which means either BRAF or KRAS carries a driver mutation.

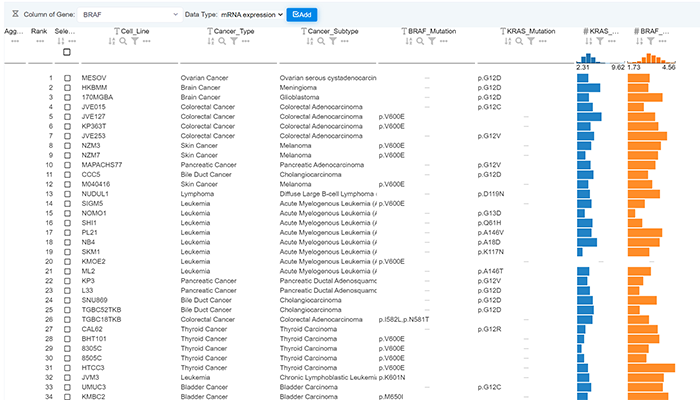

● We observe that BRAF and KRAS mutations are mutually exclusive from the heatmap, and mutation details are in the table below the heatmap.
In cancer research, identifying cell lines with specific mutations is crucial for studying disease mechanisms, developing targeted therapies, and advancing drug discovery. Mutations like KRAS G12C, a common oncogenic driver in cancers such as non-small cell lung cancer (NSCLC) and colorectal cancer, are of particular interest due to their role in tumor growth and resistance to treatment. Researchers often need to find cell lines harboring such mutations to conduct experiments that mimic the genetic landscape of tumors.
Meritudio's Tumor Models Database is an invaluable resource for this purpose, offering a comprehensive collection of genomics data for approximately 2,000 cancer cell lines. Most of these cell lines are annotated with detailed mutation data, enabling researchers to quickly identify models that match their experimental needs. In this tutorial, we will walk you through the process of searching for cell lines with a specific mutation, using KRAS G12C as an example. Screenshots will guide you step-by-step to ensure a seamless experience.
● Open your web browser and navigate to Meritudio Bioinformatics Cloud.
● Enter your credentials (username and password) to log in to the platform.
● Once logged in, locate and click on the Tumor Models Database from the top Menu.

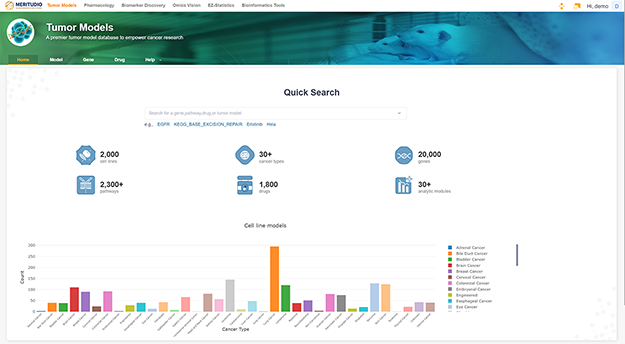

● On the Tumor Models Database homepage, locate the Quick Search box, as shown in the image.
● Type KRAS into the Quick Search box. The database will display relevant results, including gene, pathways, and associated tumor models (cell lines).
● Click on KRAS (KRS1, K-Ras4B) to continue to the KRAS gene page.
● On the KRAS gene page, you will see a graph displaying cell lines. Each dot in the graph represents a cell line.
● Red dots indicate cell lines with KRAS mutations, while blue represents wild-type.
● The graph also provides insights into the frequency of KRAS mutations across different cancer types. For example, you may observe that pancreatic cancer and colorectal cancer have a high frequency of KRAS mutations, which aligns with known oncogenic roles of KRAS in these cancers.
● The graph below also shows that there are 177 cell lines carrying mutations at position 12, of which 25 are G12C mutation.
● On the KRAS gene page, locate the Gene Mutation filter section.
● Click the last bullet point in the filter section to expand the mutation options.
● From the dropdown menu, select p.G12C and click Filter to filter for cell lines with the KRAS G12C mutation.
● The graph and results will update to display only 24 cell lines with the G12C mutation and KRAS expression data, the remaining one cell with G12C mutation has no KRAS expression data so is not in the boxplot, but can be found in the table below the boxplot.
● The table displays detailed information about 25 cell lines that carry the KRAS G12C mutation. We observe that (a) Lung adenocarcinoma and colorectal adenocarcinoma are prominently represented, consistent with the high prevalence of KRAS mutations in these cancers. (b) The mRNA expression and copy number values provide insights into the molecular characteristics of each cell line, which can help researchers select appropriate models for their studies. (c) The mutation frequency and pathogenicity classification (e.g., "likely_pathogenic") underscore the functional significance of the KRAS G12C mutation in driving cancer progression.
By following these steps, you can efficiently identify cell lines with specific mutations like KRAS G12C using Meritudio’s Tumor Models Database. This tool provides detailed genomics data, enabling researchers to explore mutation frequencies, expression levels, and copy number variations across various cancers. It’s an invaluable resource for advancing cancer research and drug development. Happy researching!
