In vitro synergy studies are essential for identifying and evaluating the combined effects of therapeutic agents, such as drugs, compounds, or biologics, in controlled laboratory settings. These studies help researchers determine whether the interaction between two or more agents produces a synergistic effect, where the combined effect is greater than the sum of their individual effects. Assessing in vitro synergy is a critical step in drug development, as it can lead to the discovery of more effective treatments, reduced dosages, and minimized side effects. This article explores the key methods used to assess in vitro synergy, highlighting their principles, applications, and limitations.
1. Dose-Response Analysis
Principle:
Dose-response analysis is the foundation of synergy assessment. It involves measuring the effect of individual agents at varying concentrations to establish their potency (e.g., IC50 or EC50 values) and efficacy. Once the dose-response curves for individual agents are established, combinations of agents are tested to determine whether their combined effect exceeds the expected additive effect.

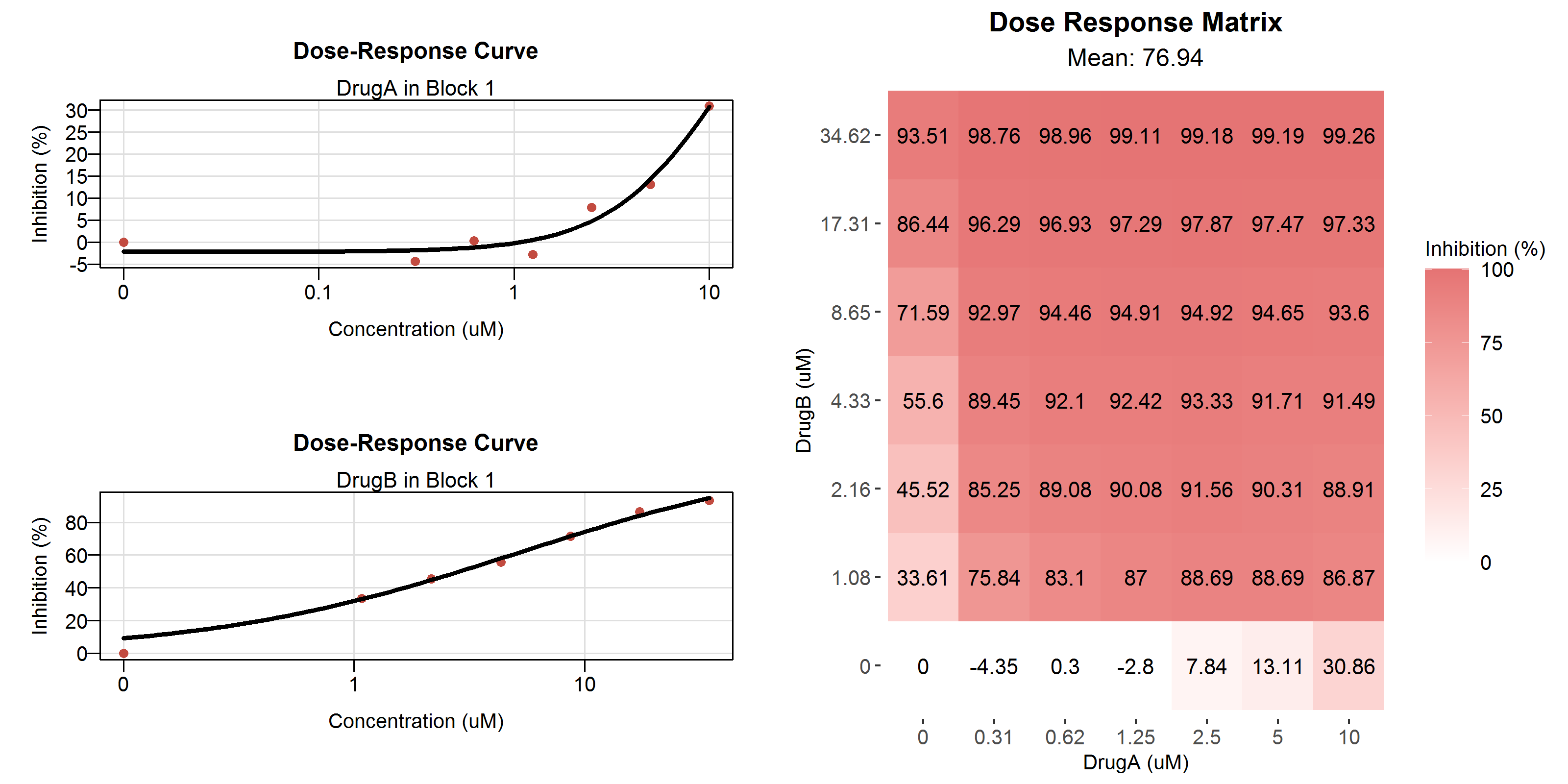

Figure 1. Dose-response curves and response matrix (source: Meritudio's Pharmcology Module)
Methodology:
• Serial dilutions of each agent are prepared and applied to a biological system (e.g., cell cultures or enzyme assays).
• The response (e.g., cell viability, enzyme inhibition, or antimicrobial activity) is measured and plotted against the concentration of the agent.
• The dose-response curves of individual agents are compared to those of the combinations.
Applications:
• Used as a preliminary step to identify potential synergistic interactions.
• Provides baseline data for more advanced synergy quantification methods.
Limitations:
• Does not directly quantify synergy; requires additional models for interpretation.
• May not account for complex interactions in biological systems.
2. Bliss Independence Model
Principle:
The Bliss Independence model assumes that the effects of two agents are independent and calculates the expected additive effect based on probability theory. Synergy is inferred when the observed combined effect exceeds the expected additive effect.

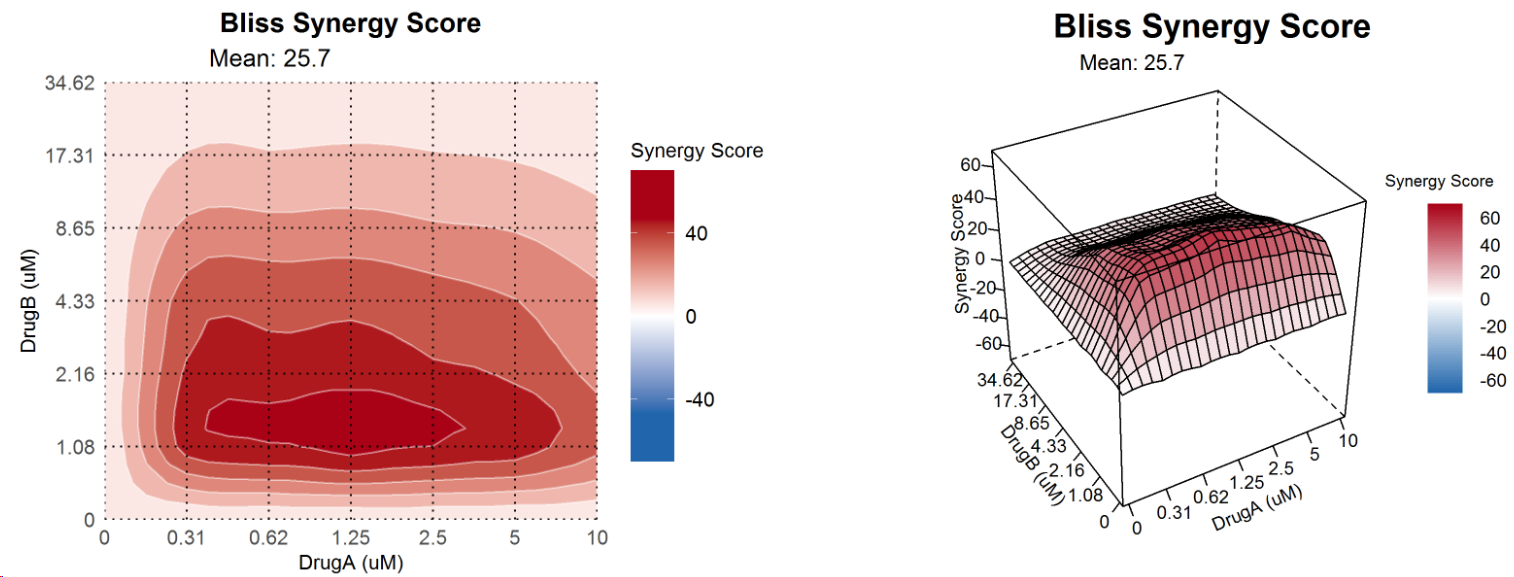

Figure 2. Bliss synergy score 2D contour and 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• The expected additive effect (Eadd) is calculated using the formula:
Eadd = EA + EB - (EA X EB)
where EA and EB are the effects of agents A and B alone.
• The observed combined effect (Eobs) is compared to Eadd.
Applications:
• Suitable for high-throughput screening of drug combinations.
• Often used in anti-tumor, antimicrobial and antiviral research.
3. Loewe Additivity Model
Principle:
The Combination Index (CI) method, based on the Loewe Additivity model, is one of the most widely used approaches to quantify synergy. It calculates whether the combined effect of two or more agents is synergistic, additive, or antagonistic. A CI value < 1 indicates synergy, CI = 1 indicates additivity, and CI > 1 indicates antagonism.

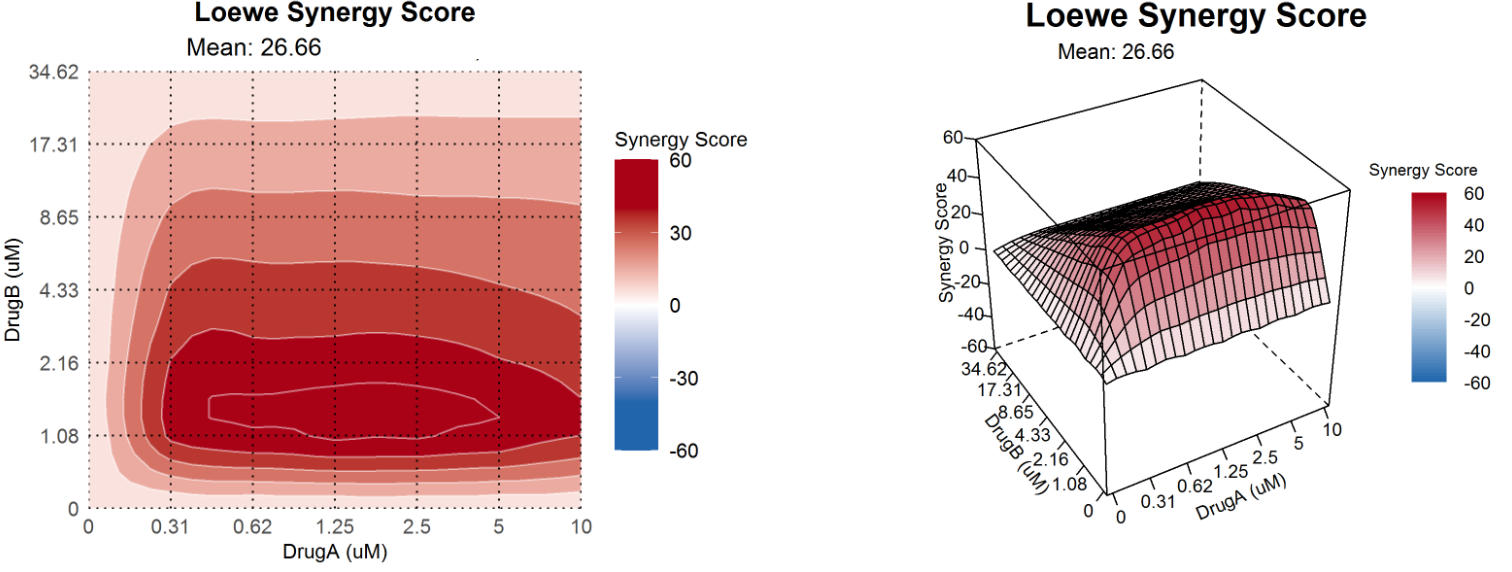

Figure 3. Loewe synergy score 2D contour and 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• Dose-response data for individual agents and their combinations are collected.
• The CI is calculated using the formula:
where D1, D2,..., Dn are the doses of the individual agents in the combination required to achieve a specific effect, and Dx1, Dx2,..., Dxn are the doses of the individual agents alone required to achieve the same effect.
Applications:
• Widely used in cancer research, antimicrobial studies, and drug discovery.
• Provides a quantitative measure of synergy.
Limitations:
• Assumes dose-response curves follow a specific shape (e.g., sigmoidal).
• May not account for non-linear interactions or complex biological systems.
4. MuSyC (Multi-dimensional Synergy of Combinations) Framework
Principle:
The MuSyC framework is a modern, advanced approach to quantifying synergy that addresses many limitations of traditional methods. Unlike classical models, MuSyC evaluates synergy across multiple dimensions, including potency, efficacy, and dose-response curve shape. It provides a more comprehensive and accurate assessment of drug interactions by considering both synergistic and antagonistic effects at different concentration ranges.

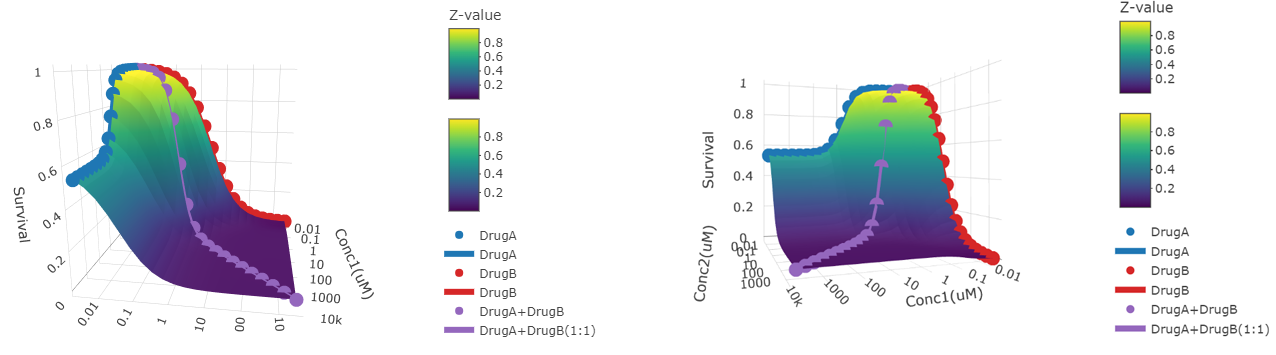

Figure 4. MuSyc 3D surface plots (source: Meritudio's Pharmcology Module)
Methodology:
• MuSyC uses a multi-parameter model to fit dose-response data for individual agents and their combinations.
• It calculates two synergy parameters:
α: Quantifies synergy in potency (shifts in IC50 values).
β: Quantifies synergy in efficacy (changes in maximal effect).
• The framework also accounts for antagonistic interactions, providing a balanced view of drug interactions.
Applications:
• Particularly useful for complex drug combinations where traditional models fail.
• Enables the identification of context-dependent synergy (e.g., synergy at low doses but antagonism at high doses).
• Applied in cancer research, infectious diseases, and precision medicine.
Advantages:
• Provides a more nuanced understanding of drug interactions.
• Accounts for both synergistic and antagonistic effects across different concentration ranges.
• Reduces the risk of false positives or misinterpretations.
Limitations:
• Requires high-quality, extensive dose-response data for accurate modeling.
• More computationally intensive than traditional methods.
• May require specialized software or expertise for implementation.
5. Meritudio’s Approach to In Vitro Synergy Assessment
Meritudio exemplifies best practices in synergy assessment through its advanced Pharmacology module, which integrates state-of-the-art models and a user-friendly workflow. Key features include:
• Synergy Model Integration: Implements Bliss Independence, Loewe Additivity, and an enhanced MuSyC framework for comprehensive synergy quantification.
• Enhanced MuSyC Implementation: Builds on the original Nature Communications publication, offering improved computational efficiency and context-dependent synergy analysis for nuanced drug interaction profiling.
• One-Click Analysis: Enables users to upload dose-response data and generate detailed reports with a single click. Reports include methods, results, and interpretations, providing actionable insights into drug interactions.
• Scalability and Accessibility: Supports both small-scale experiments and high-throughput screening, making it suitable for academic and industrial research. The intuitive interface ensures accessibility for researchers of all expertise levels.
Conclusion
Assessing in vitro synergy is a multifaceted process that involves a combination of experimental and computational approaches. Traditional methods like the Bliss Independence and Loewe Additivity models have been widely used, but they often fall short in capturing the complexity of drug interactions. The MuSyC framework represents a significant advancement in synergy quantification, offering a more comprehensive and accurate assessment by considering multiple dimensions of drug interactions, such as potency (α) and efficacy (β).
Meritudio’s Pharmacology Module integrates Bliss, Loewe, and MuSyC models into a user-friendly platform. With one-click analysis and enhanced MuSyC, it simplifies synergy quantification, enabling researchers to efficiently identify and optimize drug combinations for personalized therapies. As technology evolves, platforms like Meritudio, combined with high-throughput screening and AI, will further advance our understanding of drug interactions, transforming drug discovery and precision medicine.
References
• Bliss Independence: Bliss, C. I. (1939). The toxicity of poisons applied jointly. Annals of Applied Biology, 26(3), 585-615. DOI: 10.1111/j.1744-7348.1939.tb06990.x
• Loewe Additivity: Loewe, S. (1953). The problem of synergism and antagonism of combined drugs. Arzneimittel-Forschung, 3(6), 285-290. PMID: 13081480
• MuSyC Framework: Meyer, C. T., et al. (2019). Quantifying drug combination synergy along potency and efficacy axes. Nature Communications, 10(1), 1-11. DOI: 10.1038/s41467-019-09150-9
