1. Introduction
In vitro assays are indispensable tools in pharmacology, toxicology, and molecular biology, enabling researchers to study biological interactions in controlled environments. The quantification of these interactions through dose-response curves provides critical insights into compound potency, efficacy, and safety. This essay comprehensively reviews the mathematical, statistical, and practical aspects of fitting dose-response curves, addressing both foundational principles and emerging advancements. By synthesizing theoretical frameworks, experimental best practices, and real-world applications, this review aims to serve as a detailed guide for researchers navigating the complexities of dose-response analysis.
2. Theoretical Foundations of Dose-Response Modeling
2.1 Core Mathematical Models
The relationship between compound concentration and biological response is typically sigmoidal, reflecting saturation kinetics. The most widely used model is the four-parameter logistic (4PL) equation:
Parameters:
• Emin: Baseline effect (e.g., vehicle control).
• Emax: The maximum effect that can be achieved with the drug, representing the plateau of the dose-response curve.
• EC50: Concentration producing 50% of the maximal effect.
• nH (Hill coefficient): Slope reflecting cooperativity or binding kinetics.
Alternative Models:
•Two-parameter logistic (2PL): Assumes Emin=0 and Emax=100% (i.e., no inhibitory effect by vehicle and complete inhibition by drug).
•Five-parameter logistic (5PL): Adds asymmetry to accommodate non-symmetrical sigmoidal data.
•Gompertz model: Model asymmetric responses where the inflection point (steepest slope) is closer to one asymptote.

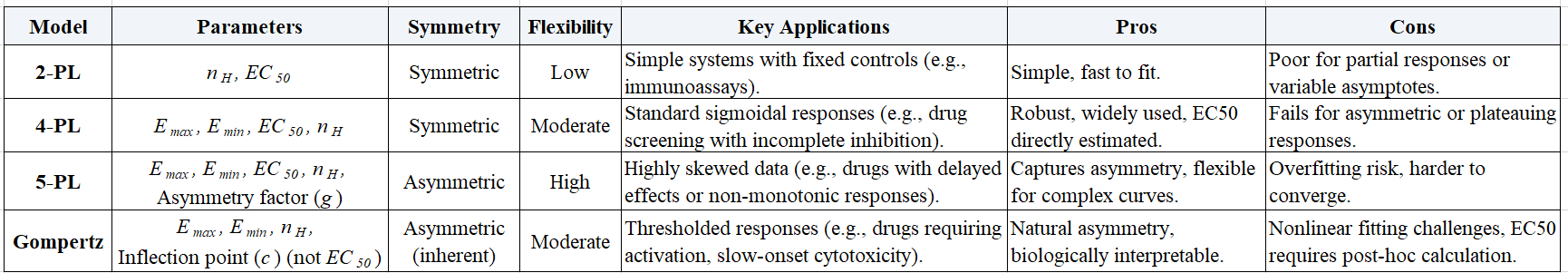

Table 1. Comparison of four commonly used dose-response models
2.2 Biological Interpretation of Model and Derived Parameters
•EC50: The drug concentration achieving half the maximal effect, calculated relative to the observed dynamic range. This metric is always computable, even for partial responders.
•IC50: Defined as the drug concentration causing 50% inhibition of cell viability. However, this metric is undefined when the maximal response does not reach 50% inhibition (e.g., partial cytotoxicity).
*: both EC50 and IC50 measure potency; lower values indicate higher affinity.
•Emax: Reflects efficacy; distinguishes full agonists (100% Emax) from partial agonists.
•Hill Coefficient (nH):
• nH>1: Suggests positive cooperativity (e.g., multi-subunit receptors like GPCRs).
• nH<1: May indicate negative cooperativity or assay artifacts (e.g., solubility issues).
•AUC: The total area under the dose-response curve between the lowest and highest tested concentrations. It integrates both potency (steepness of the curve) and efficacy (magnitude of response) into a single value, offering a comprehensive measure of drug impact. AUC is usually calculated using log-scale concentrations with fixed lowest and highest concentrations.
•nAUC: The AUC normalized to the maximum possible response, ranging from 0 to 1. It is better than AUC in practice due to its intuitive interpretability.
3. Experimental Design and Data Acquisition
3.1 Optimizing Assay Conditions
• Concentration Range: Span 3–5 orders of magnitude (e.g., 0.1 nM to 100 μM) to capture both baseline and saturation.
• Replicates: Minimum of 3 technical replicates to assess variability; biological replicates (n≥3) enhance reproducibility.
• Controls:
• Positive control: Reference compound with known EC50.
• Negative control: Vehicle (e.g., DMSO) to define Emin.
4. Curve Fitting and Model Comparison
4.1 Curve Fitting
There are both commercial and open-source software for curve fitting and model comparison. We recommend R Package drda for its model versatility, accuracy and speed. In our experience, it can fit 99.7% of the dose-response curves reliably.
• Commercial:
• GraphPad Prism: User-friendly with built-in diagnostics (residual plots, AIC).
• SigmaPlot: Advanced customization for complex models.
• Open-Source:
• R Packages: drda (dose-response curves), nls (nonlinear least squares).
• Python: SciPy.optimize, lmfit for scripting-based workflows.
4.2 Model Evaluation and Comparison
• Goodness-of-Fit Metrics:
• R2: Proportion of variance explained (values >0.9 preferred).
• Akaike Information Criterion (AIC): Penalizes model complexity; lower AIC indicates better fit.
• Bayesian Information Criterion (BIC): Similar to AIC but with a stronger penalty for models with more parameters.
• Bootstrap Analysis: Resample data to estimate confidence intervals for model parameters.
5. Challenges and Troubleshooting
5.1 Common Pitfalls
• Incomplete Curves: Missing plateaus lead to unreliable IC50 estimates.
• Solution: Extend concentration range or use constrained parameters (fix Emin and Emax).
• Hill Coefficient Artifacts:
• Aggregation: Compounds forming micelles at high concentrations (test via dynamic light scattering).
• Cellular Toxicity: Overlapping signals (e.g., apoptosis in viability assays).
• Solvent Effects: High DMSO concentrations (>0.1%) may alter responses.
5.2 Advanced Challenges
• Signal Saturation: Fluorescence/absorbance plate readers may clip signals at extremes.
• Time-Dependent Effects: For slow-acting compounds, endpoint assays underestimate potency. As a solution, it is possible to use kinetic assays or model time as a covariate.
6. Automating Dose-Response Analysis
Modern pharmacological workflows increasingly rely on computational platforms to standardize complex analyses. This section introduces the Pharmacology Module of Meritudio Bioinformatics Cloud, it is designed to automate in vitro efficacy analysis while ensuring reproducibility and scalability.
6.1 Platform Overview
The Pharmacology Module streamlines dose-response workflows through:
• Flexible Data Input:
• Supports individual dose-response pairs (response vs. dose), 96/384-well plate formats, and batch processing of multiple datasets (via CSV files or Excel worksheets).
• Automatically aligns plate maps with metadata for large-scale screening campaigns.
Figure 1. Data uploading panel allows multiple formats
6.2 Intelligent Parameter Detection and Model Fitting
The module integrates adaptive algorithms to minimize manual configuration:
1. Auto-Detection Features:
• Identifies concentration scales (log or linear), response types (inhibition, survival), and units (% viability, absolute fluorescence), reducing preprocessing errors.
2. Model Flexibility:
• Fits 2- to 5-parameter logistic (2-PL, 4-PL, 5-PL) and Gompertz models with constrained parameter optimization (e.g., fixing upper/lower asymptotes to biologically plausible ranges).
• Compares models using Akaike/Bayesian Information Criteria (AIC/BIC) to select the best fit for each dataset.

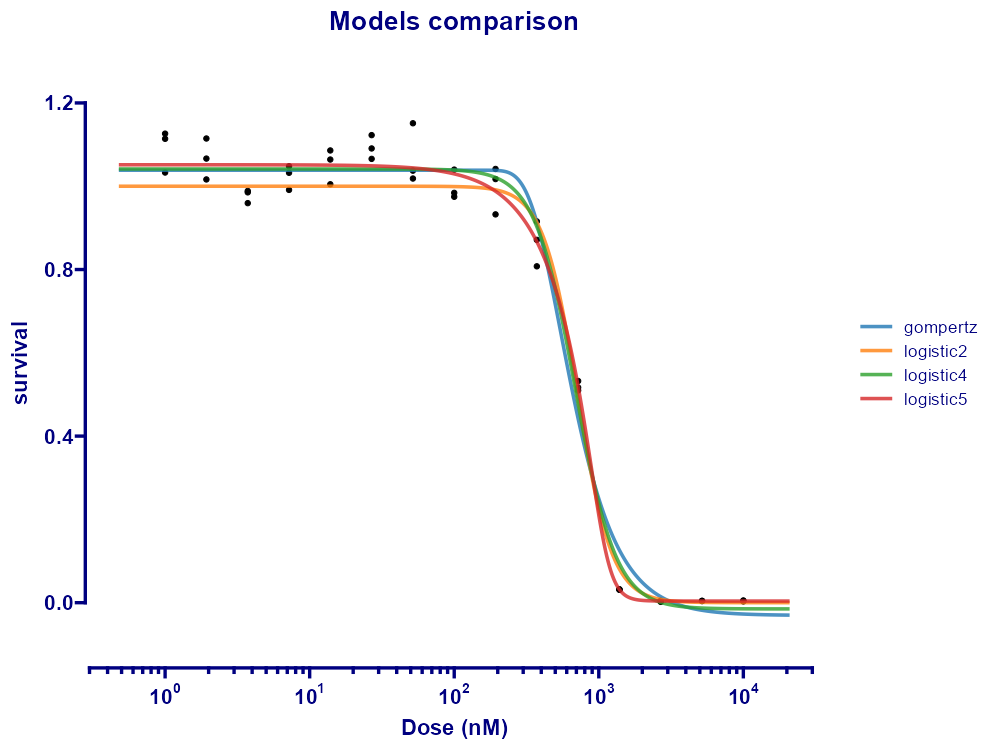

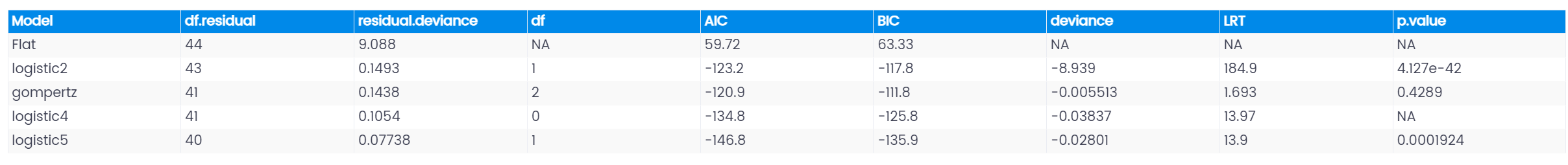

Figure 2. Top figure displays dose-response curves fitted with the user-selected models. The x-axis represents the concentration of the test compound, and the y-axis shows the survival proportion. Each curve is color-coded to represent a different model, demonstrating how each one fits the data. Bottom table provides models comparison results based on ANOVA analysis, in this example, the logistic5 (5-PL) model has the best fitting with lowest AIC/BIC values.
6.3 Workflow Automation and Reporting
The module generates publication-ready results with traceable parameters:
• Single-Click Execution:
• Runs end-to-end analysis (data import → model fitting → report generation) with one command, minimizing user intervention.
• Key Metrics:
• IC50, EC50, Hill slope, and normalized AUC (nAUC) with confidence intervals.
• Visualization Tools:
• Exports dose-response curves styled to match GraphPad Prism conventions, including dynamic axis scaling, error bars, and multi-model overlays.
• Comprehensive Reports:
• Aggregates results into structured outputs (CSV/Excel tables, PDF/PNG graphs) and includes diagnostic plots (residuals, model fits) for quality control.
• Batch Processing:
• Processes hundreds of dose-response experiments in parallel, ideal for high-throughput drug screening.

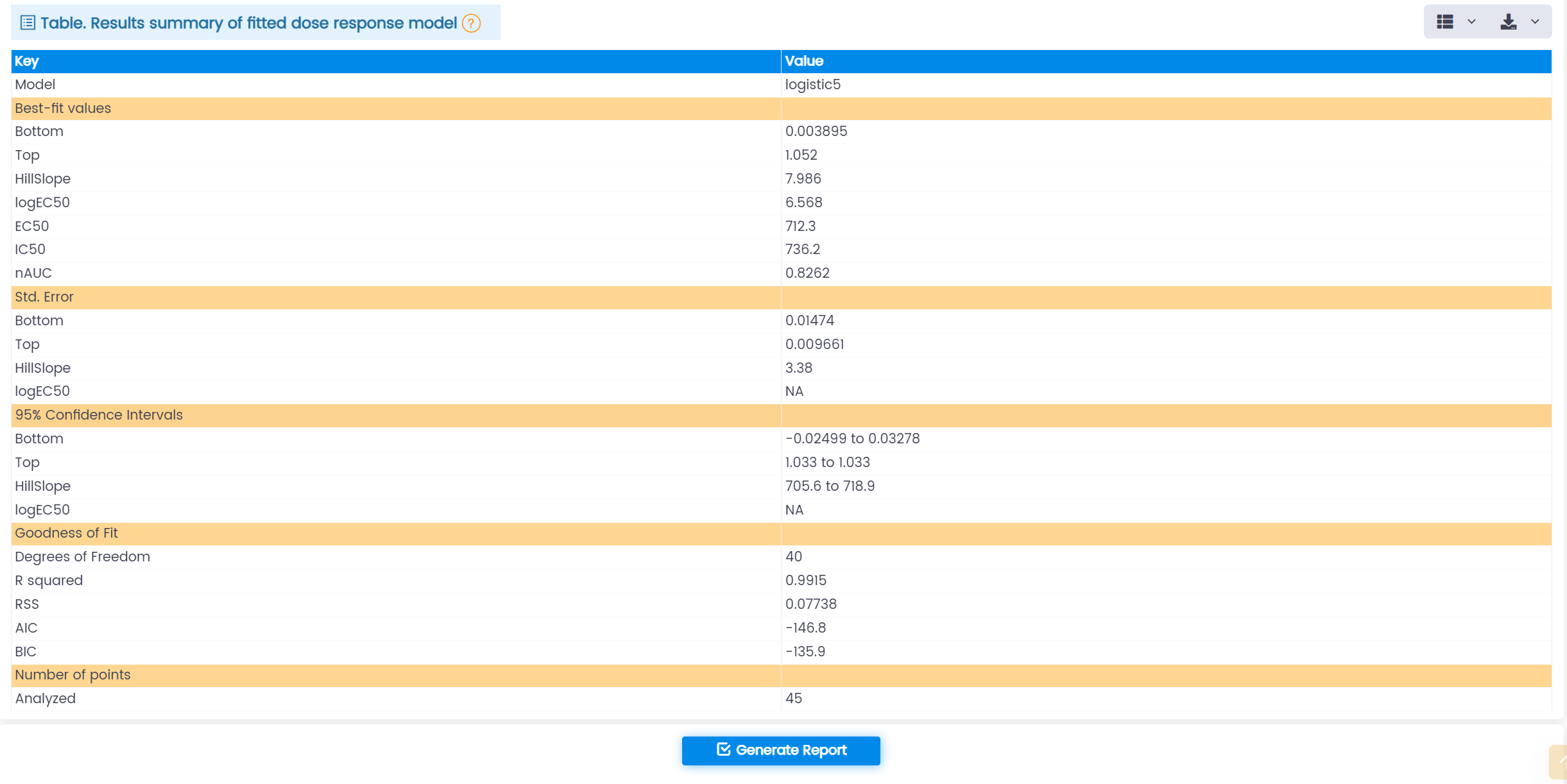

Figure 3. Dose-response curving fitting result table with the option to generate a comprehensive report
7. Summary
In vitro dose-response analysis integrates pharmacology theory with computational automation to quantify drug efficacy (IC₅₀, EC₅₀) using classical models (4-PL, Gompertz) and adaptive frameworks (5-PL) validated by AIC/BIC. Modern platforms like Meritudio streamline workflows via auto-detection of non-sigmoidal data, constrained parameter fitting, and cloud-based batch processing, ensuring reproducibility and scalability while reducing manual effort. This fusion of theory and automation accelerates drug discovery, supports pharmacology studies, and delivers standardized, audit-ready outputs for regulatory and scientific rigor.
